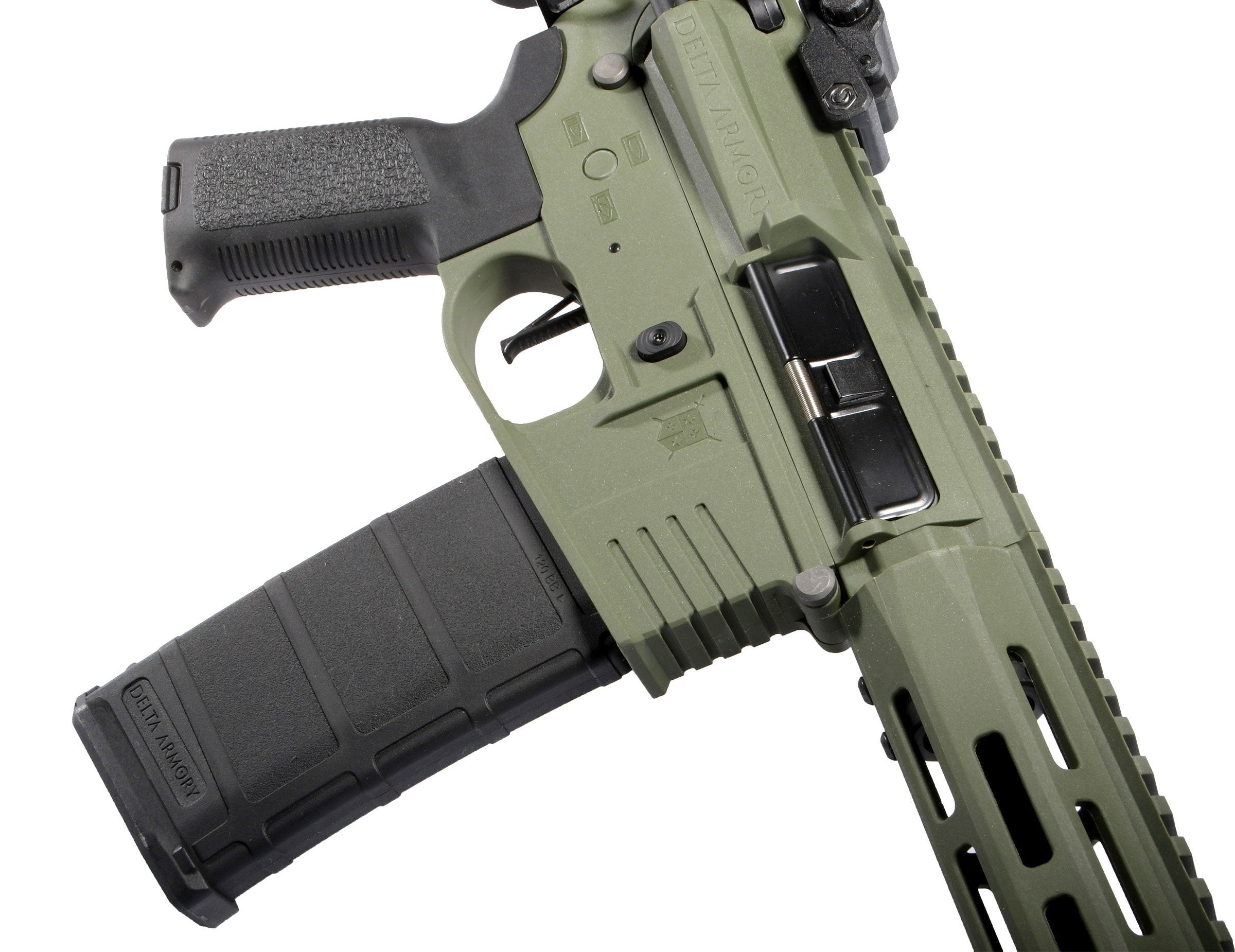

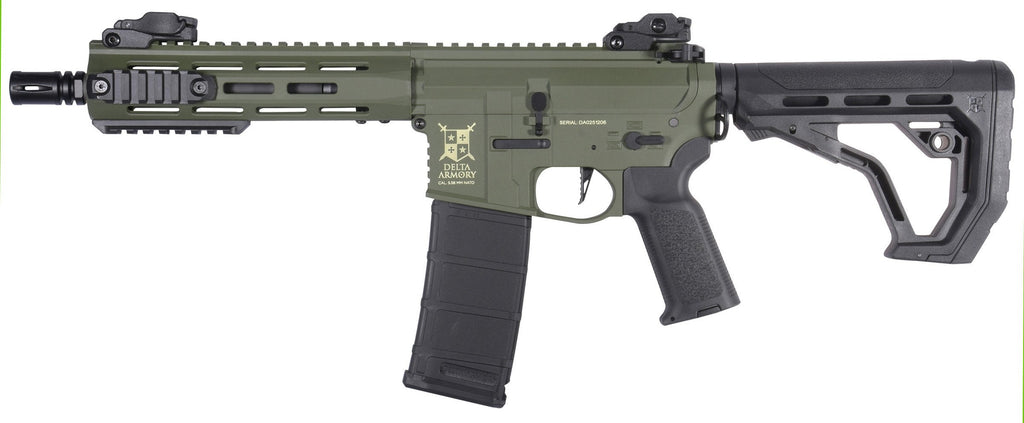

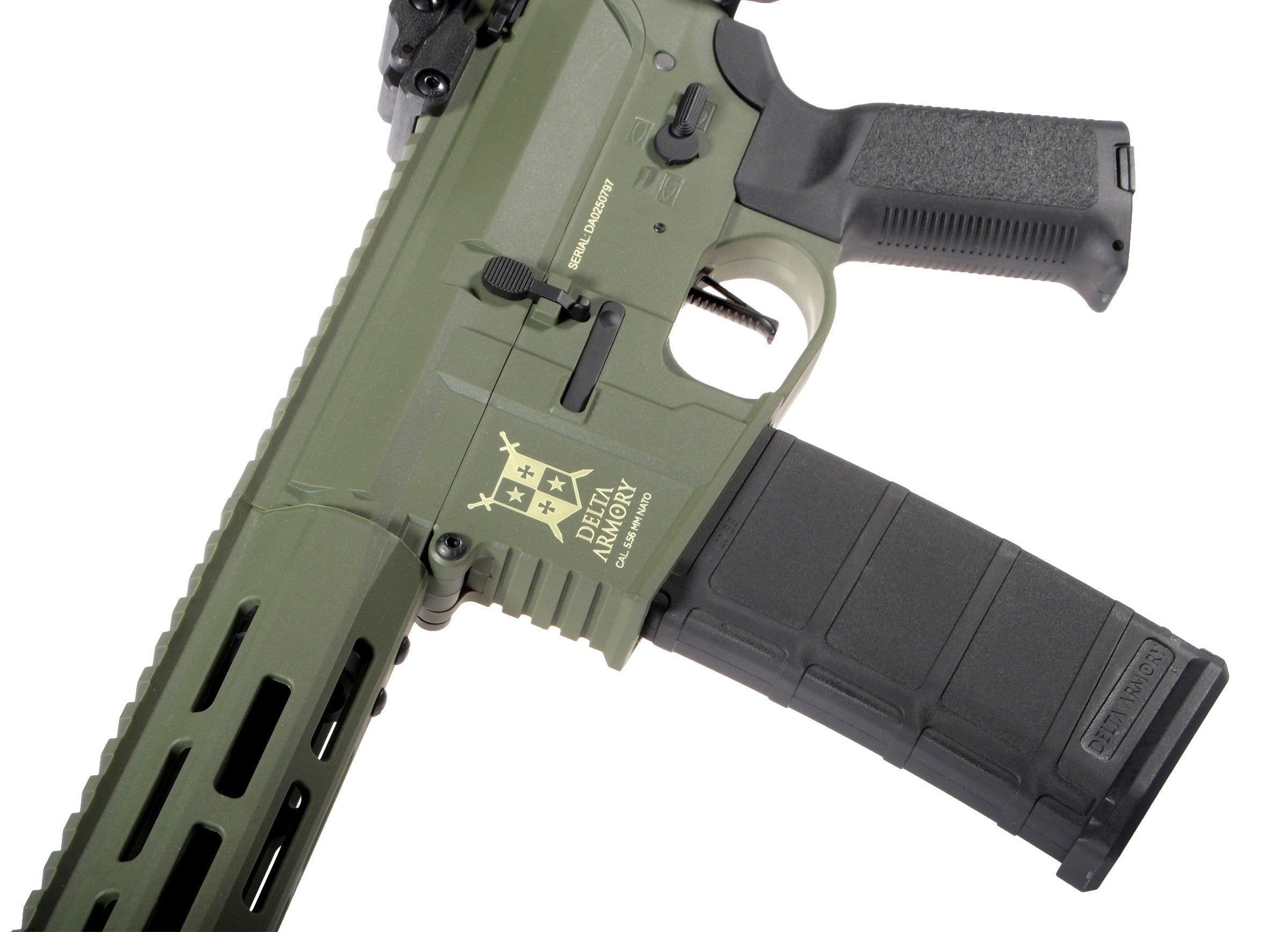

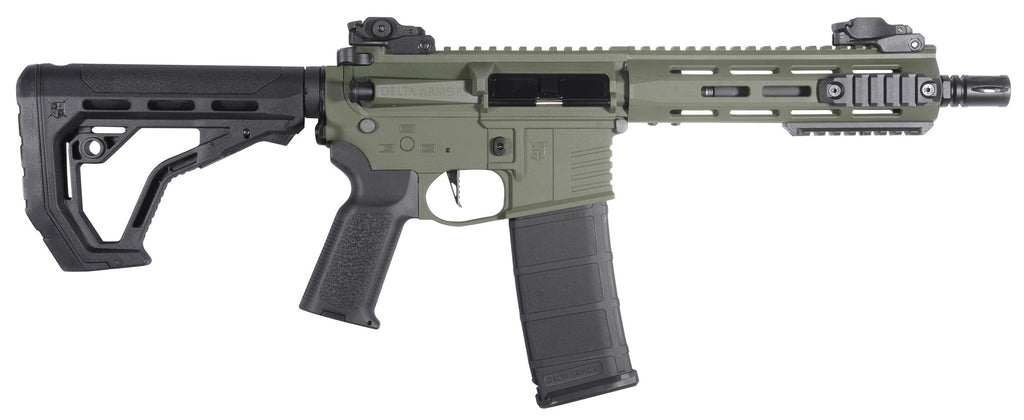

Delta Armory AR15 M-LOK 8" CHARLIE EAGLE AEG - Green
The Delta Armory AR15 M-LOK 8" CHARLIE EAGLE combines the affordability and reliability of the popular CHARLIE platform with the advanced Eagle Optical-Magnetic ETU, creating a highly responsive and feature-rich M4 AEG airsoft rifle. Designed for demanding players, it offers programmable firing modes, lightning-fast trigger response, and full compatibility with 11.1V batteries straight out of the box.
Internally, the rifle features a reinforced Version 2 gearbox capable of handling springs up to approximately M120. High-quality components include an SHS reinforced piston with 14 full metal teeth, reinforced steel gears with a delayer chip, and durable 8 mm metal bushings, delivering excellent durability and reliable long-term performance.
A 6.03 mm precision inner barrel combined with a rotary hop-up chamber ensures consistent accuracy and stable hop-up adjustment throughout extended firing sessions. The integrated QRS Gen2 Quick Spring Change System allows the spring to be replaced in just a few minutes without opening the gearbox, making it easy to adapt to different field FPS limits.
Eagle Optical-Magnetic ETU
The advanced Eagle ETU transforms the CHARLIE platform into a modern programmable AEG by combining optical and magnetic sensors for outstanding reliability and trigger performance.
- Instant optical trigger response
- Programmable Semi, Burst, Full Auto, Binary and DMR fire modes
- Adjustable trigger sensitivity
- Programmable pre-cocking
- Low-voltage battery protection
- Designed for 11.1V LiPo and Li-Ion batteries
- T-Dean connector for improved electrical efficiency
Key Features
- Eagle Optical-Magnetic ETU with programmable functions
- Reinforced Version 2 gearbox with QRS Gen2 quick spring change
- SHS reinforced piston with 14 metal teeth
- Steel gear set with delayer chip
- 8 mm metal bushings
- 6.03 mm precision inner barrel
- Rotary adjustable hop-up chamber
- ABS polymer receiver

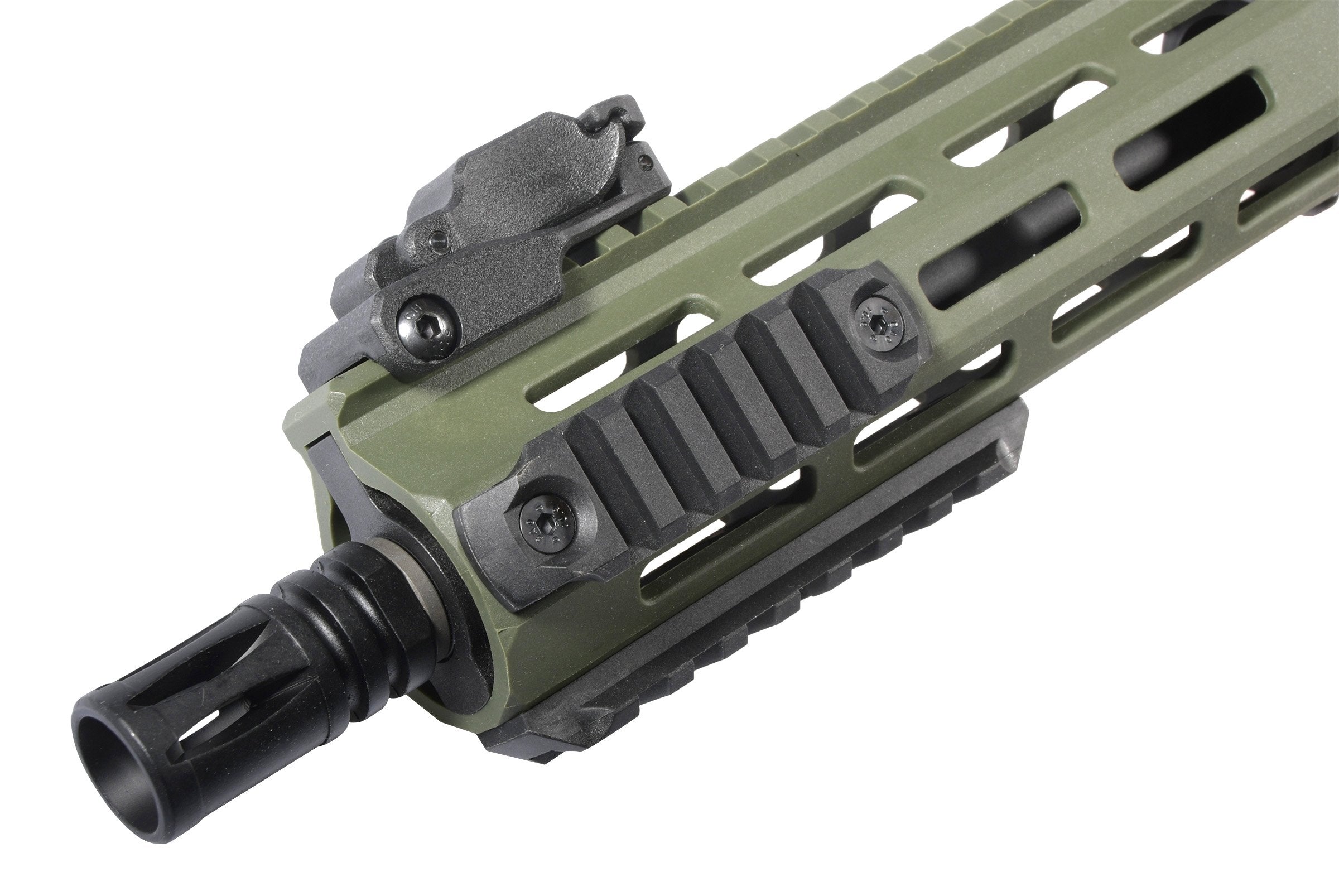

- 8" M-LOK polymer handguard with full-length Picatinny rail

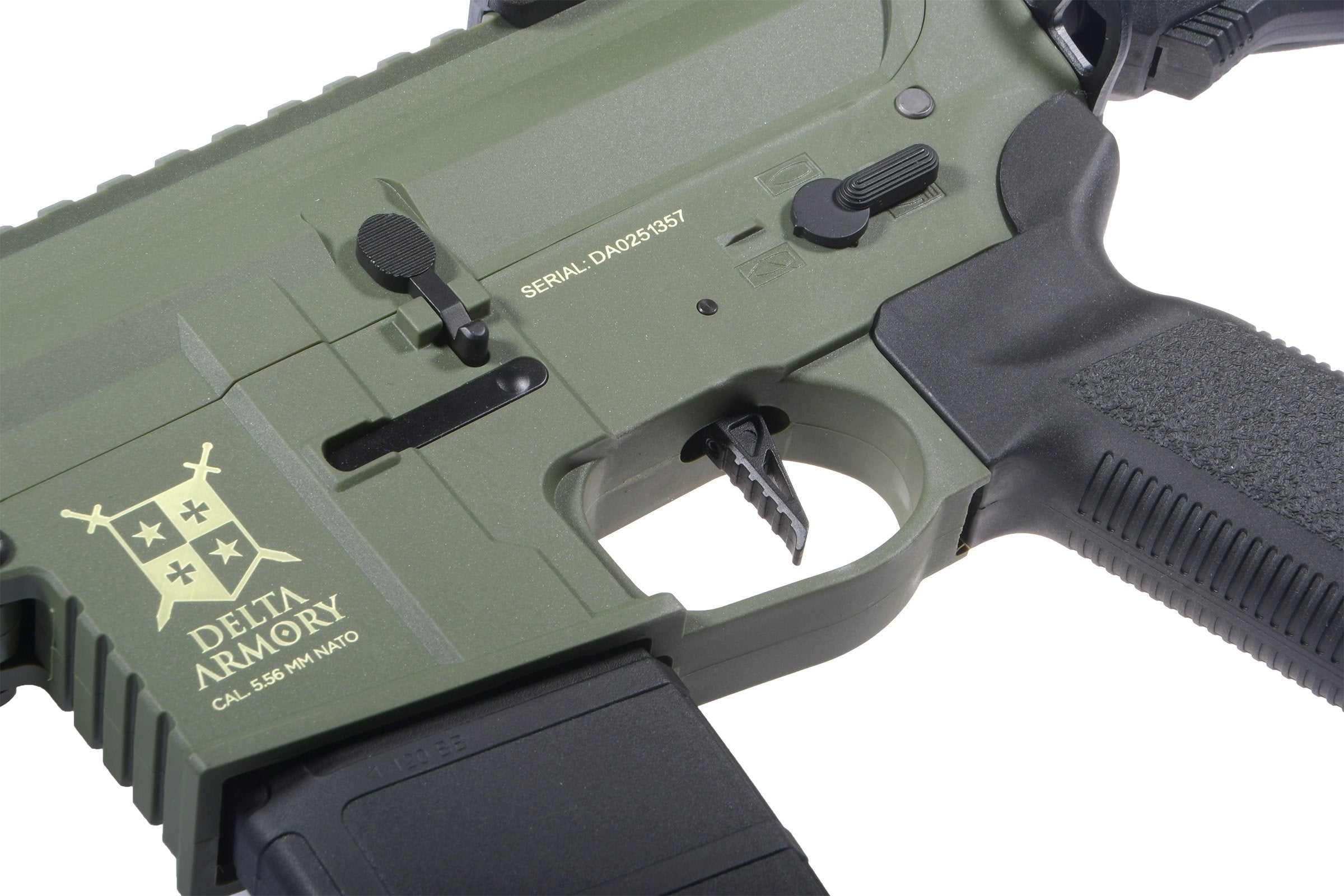

- CNC aluminium trigger
- Adjustable tactical stock
- 14 mm CCW barrel thread
- 120-round DMAG Mid-Cap magazine included
Built for CQB and Skirmish Fields
The compact 8-inch platform provides excellent manoeuvrability in close-quarter environments while remaining effective on outdoor fields. Delivering approximately 115 m/s (377 FPS with 0.20g BBs), the rifle performs best with 0.25g–0.28g BBs for improved consistency and accuracy.
Unlike standard CHARLIE models, the EAGLE version is fully designed for 11.1V LiPo and Li-Ion batteries, allowing players to enjoy maximum trigger response without requiring aftermarket ETU or MOSFET upgrades.
Package Contents
- Delta Armory AR15 M-LOK 8" CHARLIE EAGLE AEG Rifle
- DMAG Mid-Cap Magazine (120 BBs)
- 3x M-LOK RIS Rail Sections
Important Information
- Calibrate the Eagle ETU before first use by placing the selector on SAFE, connecting the battery, and holding the trigger for 5 seconds until a double beep is heard.
- Battery and charger are not included.
- A speedloader is required for loading the Mid-Cap magazine.
- Always disconnect the battery before storing the rifle.
- When installing progressive springs, ensure the tighter coil end faces outward from the spring guide.
Recommended Accessories
Complete your setup with premium accessories from Airsoftmania:
Technical Specifications
| Model |
Delta Armory AR15 M-LOK 8" CHARLIE EAGLE |
| Color |
Green |
| Weapon Type |
AEG Electric Airsoft Rifle |
| Gearbox |
Version 2 QRS Gen2 |
| ETU |
Eagle Optical-Magnetic ETU |
| Quick Spring Change |
Yes |
| Inner Barrel |
230 mm × 6.03 mm |
| Muzzle Velocity |
Approx. 115 m/s (377 FPS) |
| Fire Modes |
Semi, Burst, Full Auto, Binary, DMR |
| Recommended BB Weight |
0.25g–0.28g |
| Hop-Up |
Rotary Adjustable |
| Bearings |
8 mm Metal Bushings |
| Piston |
SHS Reinforced (14 Metal Teeth) |
| Receiver |
ABS Polymer |
| Handguard |
8" M-LOK Polymer |
| Thread |
14 mm CCW |
| Magazine Capacity |
120 BB Mid-Cap |
| Battery |
11.1V LiPo / Li-Ion (not included) |
| Connector |
T-Dean |
| Weight |
2130 g |
| Length |
615–700 mm |
